MDN4083LEA0722NMNC2ENYDAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 24Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Kirk key interlock, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers

PKF36060CU31BAC, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 600A, 600V, 50kA@480V, UL listed, high interrupting capacity, Bolt-On, 100% rated, complete with 3A/3B auxiliary switch, micrologic interchangeable standard 3.0 trip, LI - Long-Time and Instantaneous trip functions, lugs not included, Solid State electronic, molded case circuit breakers

PGFP3ATEL0400, General Electric, GuardEon, type , 3PH, 3P, 600V, 120-400A, 200kA@480V, front connection/Feed-Thru, toggle mechanism, complete with PremEon G advanced metering interchangeable trip, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm trip functions, Solid State electronic, molded case circuit breakers; meet UL, cUL, IEC, CE, CCC requirements

LGE440032G, Cutler Hammer, Series G, type , 4P, 3PH, 400A, 600V, 35kA@480V, standard interrupting capacity, Feed-Thru, complete with interchangeable trip unit and line & load side lug terminals, Solid State electronic molded case circuit breakers

MDN4083LEA0222NMNC2ENKDWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 200A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 24Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

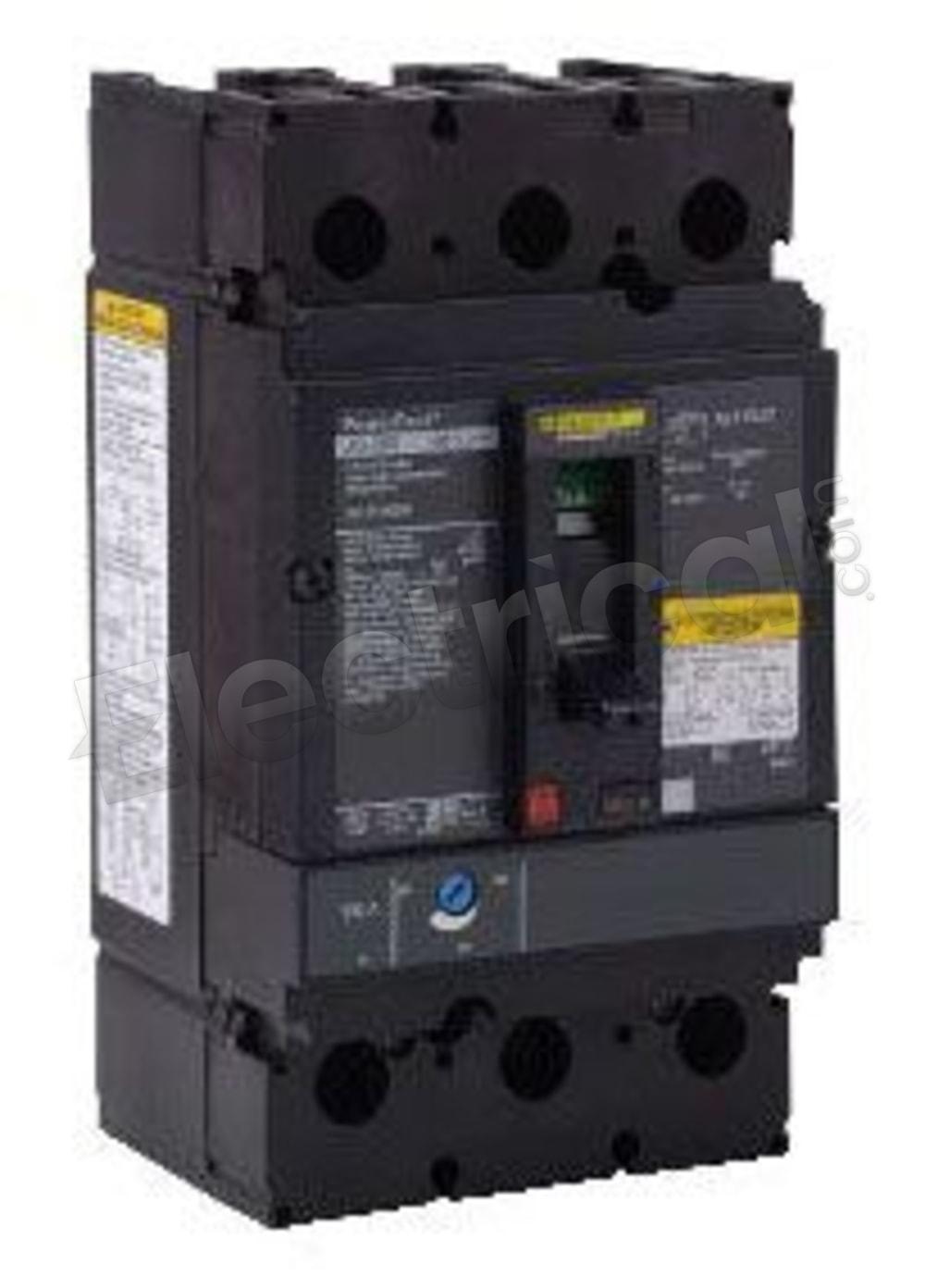

JGL37175D81, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 175A, 600Vdc, DC rated, 20kA@500VDC, standard interrupting capacity, Feed-Thru, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, magnetic trip range 350-600A, Thermal Magnetic, DC molded case circuit breakers

SSF4G4Z7K, General Electric, Power Break II, type , 3P, 3PH, 600V, 1000A current sensor rating, 65kA@480V, standard interrupting capacity, Bolt-On, front connected, 2500A frame rating, complete with Entelliguard trip, LSHG - Long-Time, Short-Time, High-Range Instantaneous and Ground Fault trip functions, current metering & ZSI features and 600A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

FBN26TE035R General Electric Record Plus, type , FB100 frame, 2P, 1PH, 35A, 600V, 65kA@480V, high interrupting capacity, Bolt-On, complete with LI - Long-Time and Instantaneous trip functions, lugs not included, fixed Thermal Magnetic, molded case circuit breakers

PDG32N0250D2DL, Eaton, Cutler Hammer, Power Defense, type , 1PH, 2P, 600V, 250A, 85kA@480V, Bolt-On, load side lug terminals, complete with PXR20D trip with LSI - Long-Time, Short-Time and Instantaneous trip functions and Modbus RTU, CAM link & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

XLUGRFAZZAAAA00000, ABB, SACE Tmax XT, type , 3PH, 3P, 600V, 1200A, 100kA@480V, Bolt-On, front terminals, complete with Ekip G Hi-Touch trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Thermal Magnetic, generator protection circuit breakers; 1SDA103480R1 global reference

MB61NB25, General Electric, MB Series, type , 247012G, B tripping, 1P, 1PH, 25A, 415V, 6kA@415V, Bolt-On, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case miniature circuit breakers

SKSS3412L3V8, General Electric, Spectra Series, type , 3P, 3PH, 1200A, 480V, 100kA@480V, standard interrupting capacity, 100% rated, UL listed, suitable for reverse fed applications, complete with microEntelliGuard trip unit with LSI - Long-Time, Short-Time and Instantaneous trip functions with extended instantaneous, advanced metering + modbus + waveform capture + relays features, Solid State with RELT and neutral protection, molded case circuit breakers

NFG4C200L Siemens VL Series, type , 4P, 3PH, 200A, 600V, 35kA@480V, standard interrupting capacity, 50℃, Feed-Thru, complete with line & load side lug terminals, Thermal Magnetic molded case circuit breakers

PDG23G0090VFFK, Eaton, Cutler Hammer, Power Defense, type , 50ºC, 3PH, 3P, 600V, 90A, 35kA@480V, Bolt-On, line side terminals only, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers; CSA, IEC, CCC certifications; non-UL listed

E3N-A20-4P-800A-DO-EO-LSIG, ABB, EMax, type , 4P, 3PH, 2000A frame, 800A rating plug, 600V, 50kA@480V, Draw-Out, electrically operated, Solid State electronic with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, low voltage power insulated case circuit breakers; if accessories are needed, please call our Sales Team for assistance

HDA261002AAUHYP, Square D, PowerPact, type , 1PH, 2P, A & C phase connection, 100A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B aux switch, 380/480 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

E12ED23B025, Siemens, SENTRON, type , 3P, 3PH, 25A, 240V, 10kA@240V, standard interrupting capacity, 40ºC, Feed-Thru, complete with Type 12 enclosure, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers

MDN4083LEA0822NMNH4ENRCAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 48Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers

SED361800LIES9A4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 1800A, 600V, 100kA@480V, Draw-Out, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 125VDC spring charging motor, shunt closing coil & 24VDC shunt trip along with 2A2B with 1N.O./N.C. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

PDD23G0045TFFN, Cutler Hammer, Eaton, Power Defense, type , 3PH, 3P, 240V, 45A, 65kA@240V, Bolt-On, lugs not included, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers; UL, CSA certifications

MDN4083LEA0622NMNH4YNRMAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 48Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers

HJL36090AEBCYP, Square D, PowerPact, type , 3P, 3PH, 90A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch, "ON" or "OFF" end handle padlock device, molded case circuit breakers

SHD4G6J9M, General Electric, Power Break II, type , 3P, 3PH, 600V, 2000A current sensor rating, 100kA@480V, high interrupting capacity, Draw-Out, 2500A frame rating, complete with Entelliguard trip, LIGA - Long-Time, Instantaneous and Ground Fault Alarm trip functions, full metering, modbus communication & relays features and 750A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

SEF36600LSES2E4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 600A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LS - Long-Time and Short-Time trip functions, Solid State protection, electrically operated complete with 24VDC spring charging motor, shunt closing coil & shunt trip along with 2 N.O. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them
