MDN4083LEA0422NMNENNNKNCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

MPA31F20W0120, General Electric, M-PACT, type , frame size 1, manually operated, with 5 N.O.-3 N.C. Auxiliary switches, Mpro-50H trip unit, 24/30V dc closing coil and 48V dc shunt trip, 3P, 3PH, 2000A, 690V, 50kA@415V, Bolt-On, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault, Solid State electronic, insulated case circuit breakers

MDN4083LEA0122NMNF2NNRNPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

NZMH2-M125-SVE, Eaton, Klockner Moeller, NZM2 Series, type , 3P, 3PH, 690V, 125A, 150kA@415V, High switching capacity, Plug-In unit, Thermal Magnetic, molded case circuit breakers, IEC rated/UL listed

MDN4083LEA0122NMNX2NNCMSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Castell keylock, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

SED363000LSIES2F4, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 3000A, 600V, 100kA@480V, Draw-Out, complete with Micrologic Series B trip device, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 24VDC spring charging motor, shunt closing coil & shunt trip along with 2 N.C. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

MDN4083LEA0622NMNGNENYNPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, operations counter & Kirk key interlock, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

HDA36100U44XAEBKSN, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 100A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse connection, micrologic ammeter 6.2A non-interchangeable trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, complete with 1A/1B low-level aux switch, alarm switch and overcurrent trip switch, low-level, 12 VDC shunt trip, molded case circuit breakers

PDF33GH250D2YJ, Cutler Hammer, Eaton, Power Defense, type , 3PH, 3P, 600V, 250A, High Override, 35kA@480V, 100% UL, Feed-Thru, line & load side lug terminals, complete with PXR20D trip with LSI - Long-Time, Short-Time and Instantaneous trip functions and Modbus RTU, CAM Link, ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

PDG64N1600E5ZN, Cutler Hammer, Eaton, Power Defense, type , 3PH, 4P, 600V, 1600A, 85kA@480V, Bolt-On, no terminals, complete with PXR20 trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault with ARMS trip functions with modbus & ZSI option, Solid State electronic, molded case circuit breakers; globally rated

SEHF361400LSIGES9B4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 1400A, 600V, 150kA@480V, high interrupt rating, Bolt-On, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 125VDC spring charging motor, shunt closing coil & 24VDC shunt trip along with 2 N.O. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

HMCP250L5S90, Westinghouse, Cutler Hammer, Eaton, Series C, type , J Frame, 3P, 3PH, 250A, 600V, 35kA@480V, Feed-Thru, complete with right-pole mounted 48-60Vdc left side shunt trip, I - Instantaneous Protection Only and standard line & load side lug terminals, magnetic range 1125-2250A, Magnetic Only, molded case circuit breakers

PDG23N0060D2DK, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 60A, 85kA@480V, Bolt-On, line side lug terminals, complete with Xpert Release PXR20D trip with LSI - Long-Time, Short-Time and Instantaneous trip functions, relays, modbus and CAM, Solid State electronic, molded case circuit breakers; globally rated

SED364000MR, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 4000A, 600V, 100kA@480V, Draw-Out, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, motor ready for electrical operation, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

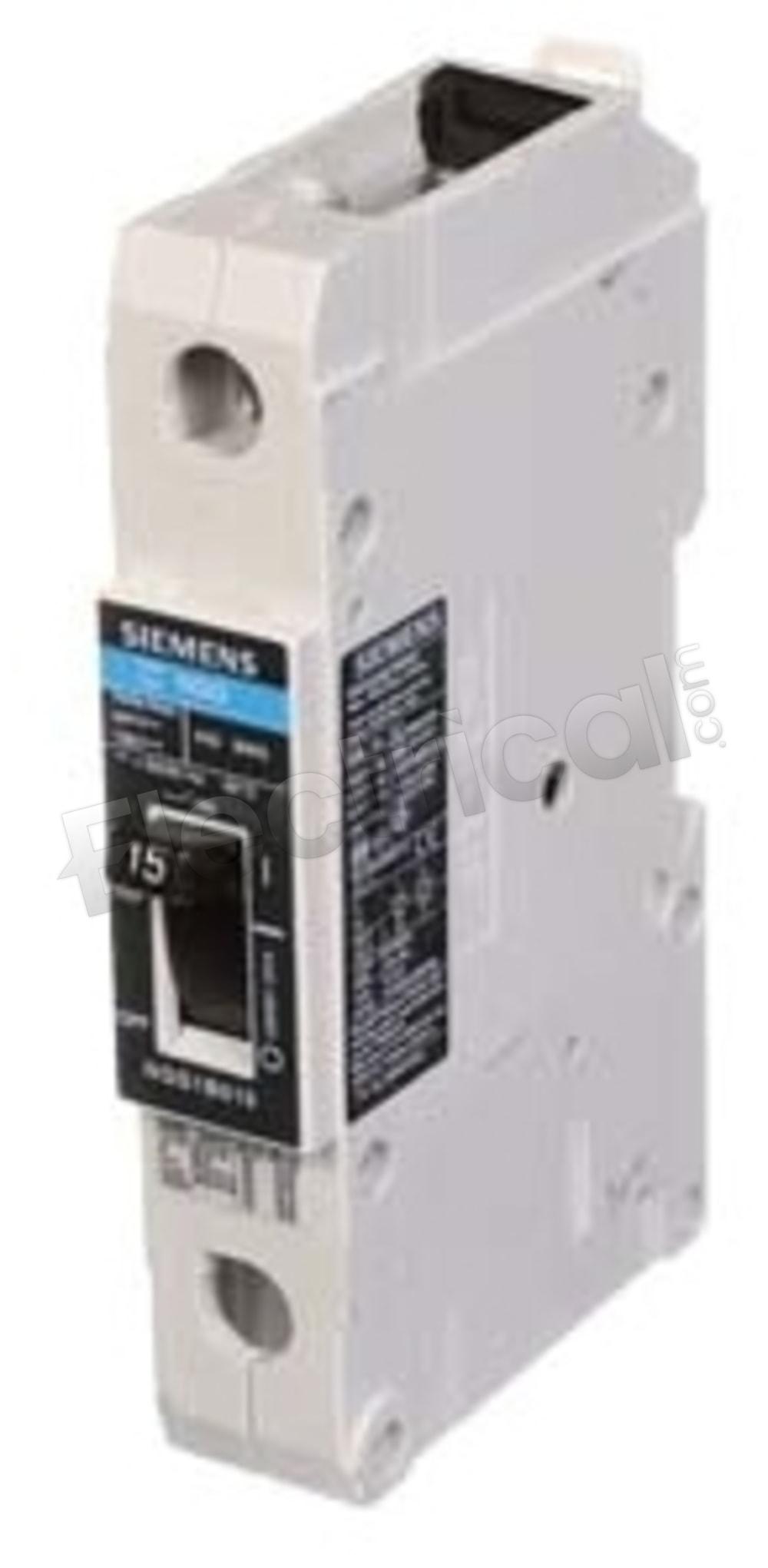

NGG1B015L, Siemens, VL Series, type , 1P, 1PH, 15A, 347V, 25kA@277V, standard interrupting capacity, suitable for reverse feed applications and screws or DIN rail mounting, Feed-Thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers

MDN4083LEA0622NMNJ2NNHCAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 480Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers

PJP36100U41BAB, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 1000A, 600V, 65kA@480V, UL listed, high interrupting capacity, Bolt-On, complete with 2A/2B auxiliary switch, micrologic interchangeable ammeter 3.0A trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Solid State electronic, molded case circuit breakers

PKF36040U43AAA, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 400A, 600V, 50kA@480V, UL listed, high interrupting capacity, Bolt-On, complete with 1A/1B auxiliary switch, micrologic interchangeable ammeter 5.0A trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, lugs not included, Solid State electronic, molded case circuit breakers

SEHF361600LSGES2B8, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 1600A, 600V, 150kA@480V, high interrupt rating, Bolt-On, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 24VDC spring charging motor, shunt closing coil & shunt trip along with 2 N.O. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

HDL36020AEURYP, Square D, PowerPact, type , 3P, 3PH, 20A, 600V, 18kA@480V, standard interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 1A/1B low-level aux switch, 125 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

HDA260504AFBCUP, Square D, PowerPact, type , 1PH, 2P, B & C phase connection, 50A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch, 48 VDC under voltage release (UVR), molded case circuit breakers

LA26175AB, Square D, I-Line, type , 2P, A & B phase circuit configuration, 1PH, 175A, 600V, 30kA@480V, standard interrupting capacity, I-Line Style Plug-In, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic molded case circuit breakers

SSF1G324L, General Electric, Power Break II, type , 3P, 3PH, 600V, 800A current sensor rating, 65kA@480V, standard interrupting capacity, Bolt-On, front connected, 800A frame rating, complete with Entelliguard trip, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm trip functions, current metering, RELT, modbus communication & ZSI features and 700A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

SEF36350LIE8, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 350A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, complete with 2 N.O. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them
