EZAUVR380AC, Merlin Gerin, EasyPact, type , under voltage release, UVR, left or right pole mounted, pre-wired, rated for 380-415Vac, suitable for use with 100A EZC frame molded case circuit breakers

SEF36350LIES1E4, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 350A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, shunt closing coil & shunt trip along with 2 N.O. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

MDN4083LEA0422NMNH2NNHDAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 48Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers

HDA260404AABHSKYP, Square D, PowerPact, type , 1PH, 2P, B & C phase connection, 40A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch low-level, 24 VAC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

XT4HQ4250GFF000XXX, ABB, molded case circuit breaker, SACE Tmax XT, Type , 4-Pole, 250A, 600V, 25kA@600V, Ekip LSIG (Electronic, LSIG protection), UL 100% Rated, Line Side Termination (top): F front terminals no lugs installed, Load Side Termination (bottom): F front terminals no lugs installed, No - 1SDA07211R1 global reference

PDF33MH400E5XL, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 400A, High Override, 65kA@480V, 100% UL, Bolt-On, load side lug terminals, complete with PXR20 trip with ARMS LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions with CAM link, ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

MDN4083LEA0822NMNA2NNHDAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-127Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers

FHP360251027, Square D, FHP Series, type , 3P, 3PH, 25A, 600V, 25kA@480V, standard interrupting capacity, Bolt-On, complete with 24Vdc shunt trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers

E6L-A40-4P-1200A-DO-EO-LSIG, ABB, EMax, type , 4P, 3PH, 4000A frame, 1200A rating plug, 600V, 150kA@480V, Draw-Out, electrically operated, Solid State electronic with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, low voltage power insulated case circuit breakers; if accessories are needed, please call our Sales Team for assistance

MDN4083LEA0822NMNN2YNKDWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

MDN4083LEA0522NMNH2ENHCSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 250A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 48Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

EDB26020SA, Schneider Electric, Square D, EDB Series, type , 2P, 1PH, 20A, 600V, 18kA@480V, complete with 120V shunt trip, standard interrupting capacity, 40°C, Bolt-On, Thermal Magnetic, molded case circuit breakers

HDA260302AEBESPYP, Square D, PowerPact, type , 1PH, 2P, A & C phase connection, 30A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch and overcurrent trip switch, 48 VDC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

HDA261504AFBESJ, Square D, PowerPact, type , 1PH, 2P, B & C phase connection, 150A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch and overcurrent trip switch, 525/600 VAC shunt trip, molded case circuit breakers

HFB1045L, Westinghouse, Cutler Hammer, MARK 75, type , 1P, 1PH, 45A, 277V, 65kA@277V, high interrupting capacity, 40ºC, Feed-Thru, complete with trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers; these breakers are now obsolete; however, we do still stock them

MDN4083LEA0322NMNC4ENACSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 24Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

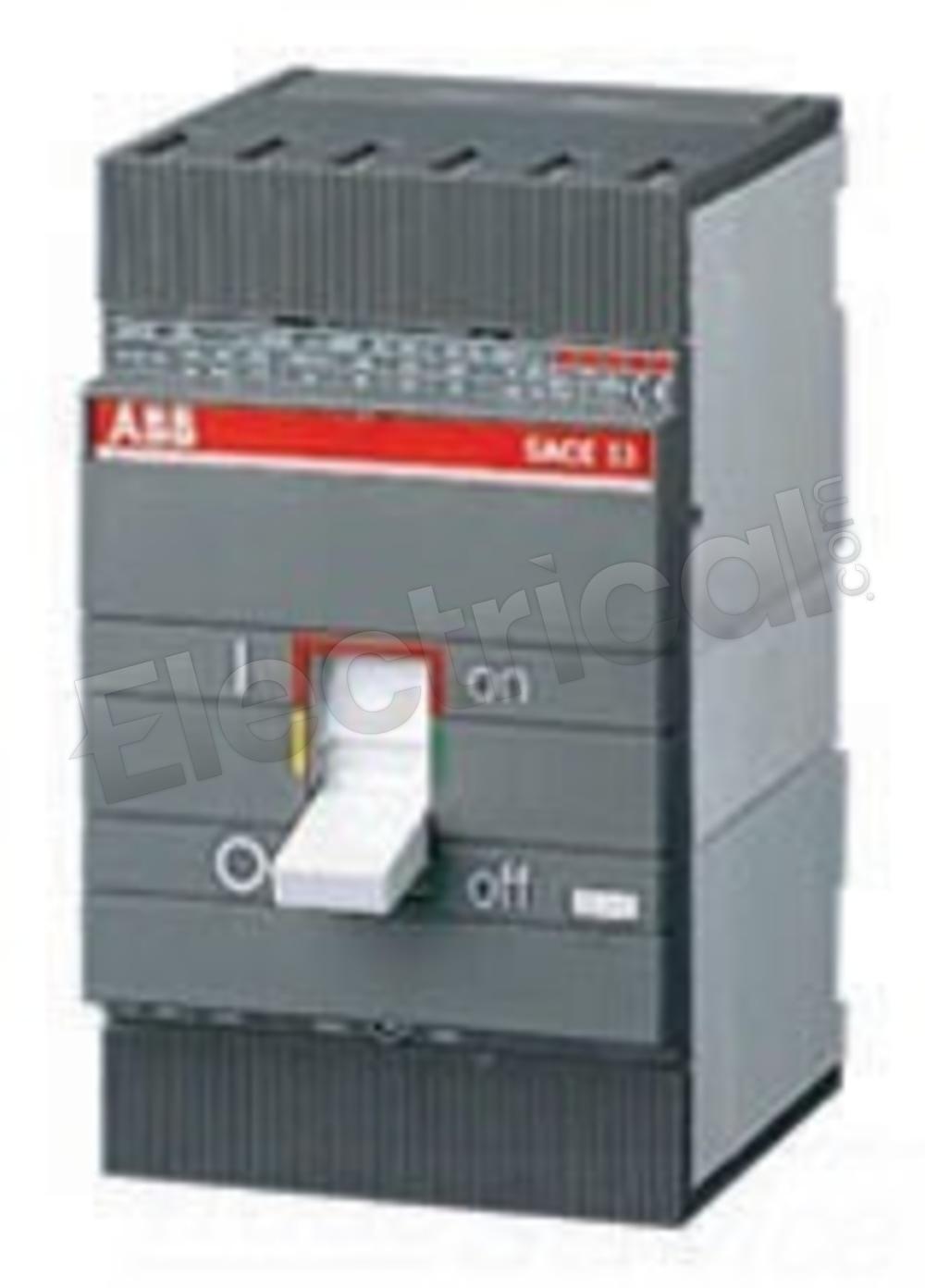

S3HQ200TW, ABB, SACE Isomax, type , 3P, 3PH, 200A, 600V/500VDC, 50kA@480V, 65kA@415V, 100% UL rated, Bolt-On, suitable for reverse feed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers

PDG23F0020VFFL, Cutler Hammer, Eaton, Power Defense, type , 50ºC, 3PH, 3P, 600V, 20A, 25kA@480V, Bolt-On, load side terminals only, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers; CSA, IEC, CCC certifications; non-UL listed

PGP36060U44ABD, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 600A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Bolt-On, complete with 1A/1B overcurrent trip switch, micrologic interchangeable ammeter 6.0A trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and load side lug terminals, Solid State electronic, molded case circuit breakers

HDL26030ABBEYP, Square D, PowerPact, type , 2P, 1PH, 30A, 600V, 18kA@480V, standard interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 2A/2B aux switch, alarm switch and overcurrent trip switch, "ON" or "OFF" end handle padlock device, molded case circuit breakers

BGA160353, Square D, Schneider Electric, PowerPact, type , 1PH, 1P, 600Y/347Vac, 35A, 65kA@240V, I-Line Style Plug-In with B phase connection, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side mechanical lug terminals, Thermal Magnetic, molded case circuit breakers

HDL26030AFBHSL, Square D, PowerPact, type , 2P, 1PH, 30A, 600V, 18kA@480V, standard interrupting capacity, Feed-Thru, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch low-level, 48 VAC shunt trip, molded case circuit breakers

WLL2D316BG, Siemens, WL Series, type , frame size II, drawout, 3P, 3PH, 1600A, 600V, 100kA@480V, UL listed, high interrupting capacity, Draw-Out, complete with solid state ETU745 programmer + WLGFM48 ground fault module, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and 225A rating plug, Solid State electronic, low voltage insulated case circuit breakers

HJA36100U44XAEBCUH, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 100A, 600V, 65kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse connection, micrologic ammeter 6.2A non-interchangeable trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, complete with 1A/1B low-level aux switch, alarm switch, 380/480 VAC under voltage release (UVR), molded case circuit breakers
