PKL36040CU44B, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 400A, 600V, 50kA@480V, UL listed, high interrupting capacity, Feed-Thru, 100% rated, complete with micrologic interchangeable ammeter 6.0A trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers

SSD6G9B71, General Electric, Power Break II, type , 3P, 3PH, 600V, 4000A current sensor rating, 100kA@480V, standard interrupting capacity, Draw-Out, 3000A frame rating, complete with Entelliguard trip, LSHG - Long-Time, Short-Time, High-Range Instantaneous and Ground Fault trip functions, current metering, RELT & modbus communication features and 2500A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

NJJ232400NAW, Federal Pacific, NJJ Series, type , 3P, 3PH, 400A, 240V, 30kA@480V, Bolt-On, NA - No Overcurrent Protection, Non-Automatic switch, no terminals included, molded case circuit breakers; these switches are obsolete; however, we do still stock them

SEHD36400LSIGES3F4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 400A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 48VDC spring charging motor, shunt closing coil & shunt trip along with 2 N.C. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

SSF2G516K, General Electric, Power Break II, type , 3P, 3PH, 600V, 1600A current sensor rating, 65kA@480V, standard interrupting capacity, Bolt-On, front connected, 1600A frame rating, complete with Entelliguard trip, LSH - Long-Time, Short-Time and High-Range Instantaneous trip functions, current metering, RELT & ZSI features and 600A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

PJA36025CU31ABD, Schneider Electric, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 250A, 600V, 65kA@480V, UL listed, high interrupting capacity, I-Line Style Plug-In, 100% rated, complete with 1A/1B overcurrent trip switch, micrologic interchangeable standard 3.0 trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers

PDG21N0035VFFJ, Eaton, Cutler Hammer, Power Defense, type , 50ºC, 1PH, 1P, 600V, 35A, 85kA@480V, Feed-Thru, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers; CSA, IEC, CCC certifications; non-UL listed

HRA36100U33XAEBEURYP, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 100A, 600V, 200kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse connection, can be used for 2P applications, micrologic standard 3.2S non-interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, complete with 1A/1B low-level aux switch, alarm switch and overcurrent trip switch, 125 VDC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

SEHD36250LSS3, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 250A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LS - Long-Time and Short-Time trip functions, Solid State protection, complete with 48VDC shunt trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

E6X-A40-4P-1000A-DO-MO-LSI, ABB, EMax, type , 4P, 3PH, 4000A frame, 1000A rating plug, 600V, 200kA@480V, Draw-Out, manually operated, Solid State electronic with LSI - Long-Time, Short-Time and Instantaneous trip functions, low voltage power insulated case circuit breakers; if accessories are needed, please call our Sales Team for assistance

BDF46050, Schneider Electric, Square D, PowerPact, type , 3PH, 4P, 600Y/347Vac, 50A, 18kA@480V, Bolt-On with terminal nut connectors, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers

MDN4083LEA0722NMNC4ENYCCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 24Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Kirk key interlock, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

NFG3P250, Siemens, VL Series, type , FG Frame, 3P, 3PH, 250A, 600V, 35kA@480V, standard interrupting capacity, Bolt-On, complete with LSI - Long-Time, Short-Time and Instantaneous trip functions, lugs not included, Digital Solid State Electronic molded case circuit breakers

MDN4083LEA0622NMNXNENHDCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

KAP3625022M1212, Square D, KAP SERIES, type , 3P, 3PH, 250A, 600V, 25kA@480V, standard interrupting capacity, , complete with 1A/1B auxiliary switches, I - Instantaneous protection only and load side lug terminals, MCP, motor circuit protectors, magnetic trip range 500-1000A, Magnetic Only, molded case circuit breakers; these MCPs are obsolete, however, we do still stock them

HJA260204BHUN, Square D, PowerPact, type , 1PH, 2P, B & C phase connection, 20A, 600V, 65kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with alarm switch low-level, 12 VDC under voltage release (UVR), molded case circuit breakers

PDG3XPXR30400P3D, Eaton, Cutler Hammer, Power Defense, Power Xpert Release (PXR) trip units and programmers, 3P, 600V, 400A, Solid State protection, PXR25 with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions with Relays, Modbus & CAM, suitable for globally rated PDG,PDF Frame 3 circuit breakers

MPA32F32N3200, General Electric, M-PACT, type , frame size 2, manually operated, 5 N.O- 3 N.C. Auxiliary switches, Mpro-27 trip unit, 110/130V dc/ac motor operator and 48V dc closing coil, 3P, 3PH, 3200A, 690V, 50kA@415V, fixed/Bolt-On, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, insulated case circuit breakers

MDN4083LEA0722NMNN2ENKNPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

MPA32F40V3030, General Electric, M-PACT, type , frame size 2, manually operated, 5 N.O- 3 N.C. Auxiliary switches, Mpro-50L trip unit, 110/130V dc/ac motor operator and 110/130V dc/ac shunt trip, 3P, 3PH, 4000A, 690V, 50kA@415V, fixed/Bolt-On, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, insulated case circuit breakers

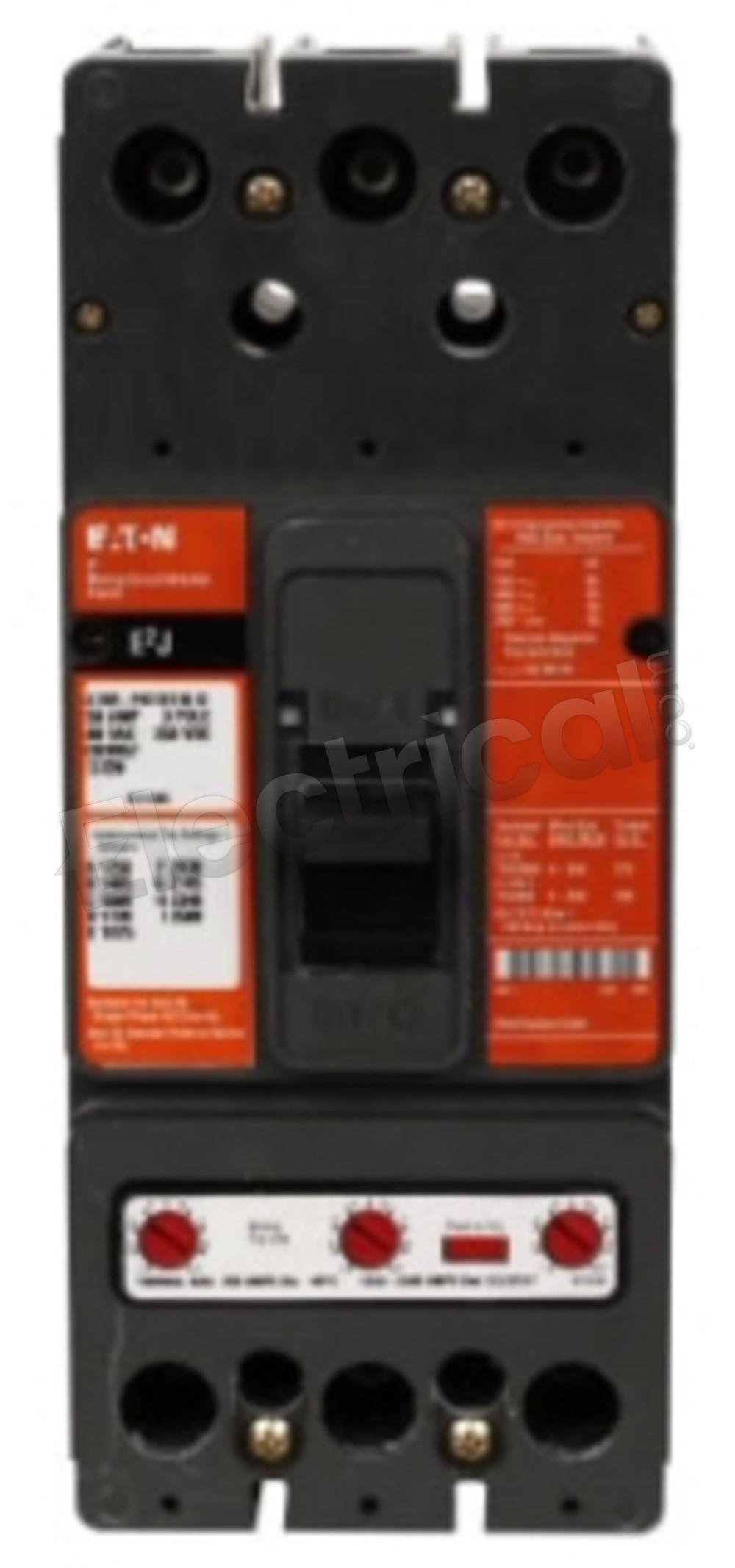

E2J3150W, Cutler Hammer, Eaton, Westinghouse, Series C, E2 mining service breakers, type , 3P, 3PH, 150A, 600V, 250Vdc, 18kA@600V, standard interrupting capacity, Bolt-On, complete with interchangeable trip, LI - Long-Time and Instantaneous trip functions, magnetic trip range 750-1500A, lugs not included, Thermal Magnetic, molded case circuit breakers

MP12H-3P-1000A-MO-DO-LSI, Merlin Gerin, insulated case circuit breaker, Masterpact, type , 1200A frame with 1200A sensor rating with 1000A rating plug, 3P, 3PH, 600V, 65kA@480V, acceptable with the following programmer/trip unit devices: STR28D, STR28DP, STR38S, STR38P, STR38ST, STR38SW, STR58U, STR58UP, STR58UT, STR58UW, STR68U, AC-PRO-MP, Solid State electronic, insulated case circuit breakers

4995D10G06, Westinghouse, Cutler Hammer, Classic Mining Service, type , standard handle reset under voltage release, 12VDC, left side mounted, 18 inch leads, suitable for use with Classic Mining Service KAM,KAMH,HKAM frame molded case circuit breakers

MDN4083LEA0622NMNG4NNYCCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Kirk key interlock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired
