SEHD36300LSIES7A8, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 300A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 125VDC shunt trip along with 4A4B with 1N.O./N.C. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

MDN4083LEA0122ALC1NNNNNAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, factory installed 110-127Vac shunt trip (ST), 110-127Vac second shunt trip (STA) & mechanical trip indicator, electrically operated with factory installed 24Vdc motor operator & spring release device (SRD), Solid State, low voltage power insulated case circuit breakers

100H-2-5000A-EO-BO-LSG, Federal Pacific, Federal Pioneer, H-2 Series, type , 5000A non-nema frame size, electrically operated/Bolt-On, 3P, 3PH, 5000A, 600V, 85kA@480V, available with multiple trip unit options, LSG - Long-Time, Short-Time and Ground Fault trip functions, Solid State electronic, low voltage power air circuit breakers

B1E4D32, Noark Electric, Ex9 Series, type , UL 1077 rated supplementary protectors, 3PH, 4P, 480V, 32A, 5kA@480V, Feed-Thru box terminals, D trip curve,\n Thermal Magnetic, din rail mounted molded case circuit breakers

SHD2G5C2T, General Electric, Power Break II, type , 3P, 3PH, 600V, 1600A current sensor rating, 100kA@480V, high interrupting capacity, Draw-Out, 1600A frame rating, complete with Entelliguard trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, current metering & modbus communication features and 1500A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

SEHD36200LSIES6F8, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 200A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 48VDC shunt trip along with 2 N.C. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

SEHD36250ES8A8, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 250A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 24VDC shunt closing coil & 24VDC shunt trip shunt trip along with 4A4B with 1N.O./N.C. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

MDN4083LEA0522NMNN4YNHCSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 250A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Ronis key interlock, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

SGHH3606L7W2 General Electric Spectra Series, type , 3P, 3PH, 600A, 600V, 35kA@480V, standard interrupting capacity, 100% rated, UL listed, suitable for reverse fed applications, complete with microEntelliGuard trip unit with LSI-CP, LSI - Long-Time, Short-Time and Instantaneous and ZSI, zone selective interlocking, RELT, reduced energy let-through & neutral protection trip functions and basic metering communication features, Solid State electronic, molded case circuit breakers

EB2060L, Westinghouse, Cutler Hammer, AB DE-ION, type , 2P, 1PH, 60A, 240V, 10kA@240V, standard interrupting capacity, 40ºC, Feed-Thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, molded case circuit breakers; these breakers are now obsolete; however, we do still stock them

MDN4083LEA0522NMNG4NNLDSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 250A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Castell key interlock, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

NW12N-3P-DRAWOUT, Schneider Electric, Square D, Masterpact, type , W-Frame, 3P, 3PH, 1200A, 600V, 65kA@480V, standard interrupting capacity, Draw-Out, complete with Micrologic trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State electronic, Universal Power insulated case circuit breakers

WLS1D320HL, Siemens, WL Series, type , frame size I, drawout, 3P, 3PH, 2000A, 600V, 65kA@480V, UL listed, standard interrupting capacity, Draw-Out, complete with solid state ETU748 programmer + WLGFA48 ground fault module, LSGA - Long-Time, Short-Time and Ground Fault Alarm trip functions and 450A rating plug, Solid State electronic, low voltage insulated case circuit breakers

HGA260901AEBCUKYP, Square D, PowerPact, type , 2P, A & B phase connection, 1PH, 90A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B low-level aux switch, alarm switch, 24 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

LRS36400U33X, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 400A, 600V, 200kA@480V, UL listed, current limiting, rear connected, Bolt-On, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3S trip unit, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers

PKF36025U73AE1AA, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 250A, 600V, 50kA@480V, UL listed, high interrupting capacity, Bolt-On, complete with 1A/1B auxiliary switch, micrologic interchangeable harmonic 5.0H trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, lugs not included, Solid State electronic, molded case circuit breakers

SEF363200LSIET1, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 3200A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, shunt closing coil & shunt trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

PDG33M0250D2WL, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 250A, 65kA@480V, Bolt-On, load side lug terminals, complete with PXR20D trip with LSI - Long-Time, Short-Time and Instantaneous trip functions and Modbus RTU, ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

MDN4083LEA0622NMNX2ENKDAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 600A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Kirk keylock, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers

PLF34080CU74BE1AC, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 800A, 480V, 100kA@480V, UL listed, very high interrupting capacity, Bolt-On, 100% rated, complete with 3A/3B auxiliary switch, micrologic interchangeable harmonic 6.0H trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, lugs not included, Solid State electronic, molded case circuit breakers

PGM36080CU31ABC, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 800A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Bolt-On, 100% rated, complete with 1A/1B alarm switch, micrologic interchangeable standard 3.0 trip, LI - Long-Time and Instantaneous trip functions and line side lug terminals, Solid State electronic, molded case circuit breakers

247008G, General Electric, MB Series, type , MB61NB06, B tripping, 1P+N, 1PH, 6A, 415V, 6kA@415V, Bolt-On, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case miniature circuit breakers

SSD4G6R9M, General Electric, Power Break II, type , 3P, 3PH, 600V, 2000A current sensor rating, 65kA@480V, standard interrupting capacity, Draw-Out, 2500A frame rating, complete with Entelliguard trip, LIGA - Long-Time, Instantaneous and Ground Fault Alarm trip functions, full metering, modbus communcation & ZSI features and 750A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

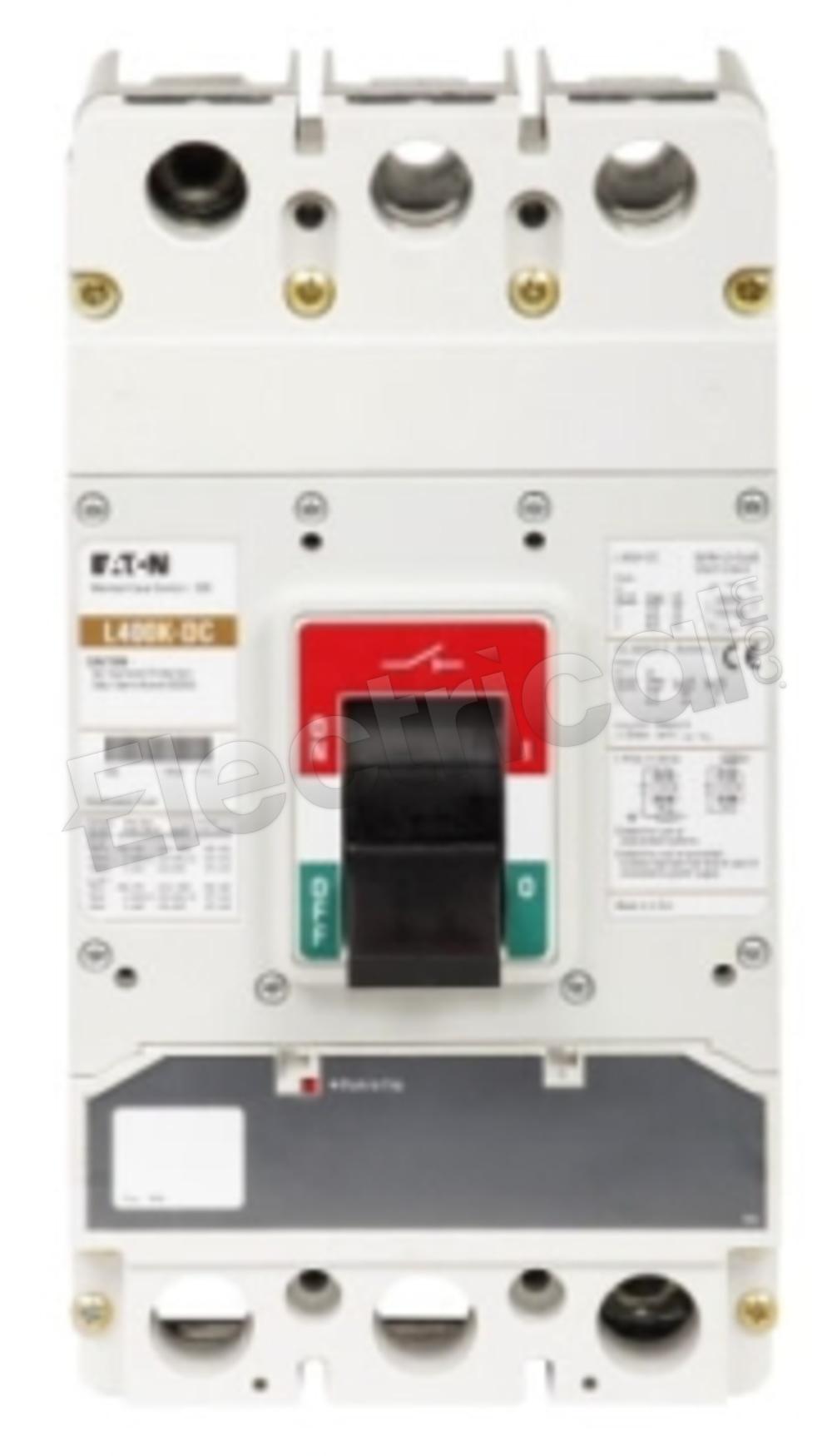

LGEDC3300FAG, Cutler Hammer, Series G, type , 3P, 3PH, 300A, 600V, DC rated, 35kA@600V, high interrupting capacity, Feed-Thru, complete with trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers
