PJF36040U41BAA, Square D, Schneider Electric, PowerPact, type , 3P, 3PH, 400A, 600V, 65kA@480V, UL listed, high interrupting capacity, Bolt-On, complete with 1A/1B auxiliary switch, micrologic interchangeable ammeter 3.0A trip, LI - Long-Time and Instantaneous trip functions, lugs not included, Solid State electronic, molded case circuit breakers

SEHD361800LSES5F4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 1800A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LS - Long-Time and Short-Time trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 24VDC shunt trip along with 2 N.C. AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

MPA41F16, General Electric, M-PACT, type , frame size 1, manually operated, with 5 N.O.-3 N.C. Auxiliary switches, 4P, 3PH, 1600A, 690V, 50kA@415V, Bolt-On, NA - No Overcurrent Protection, Non-Automatic switch, insulated case circuit breakers

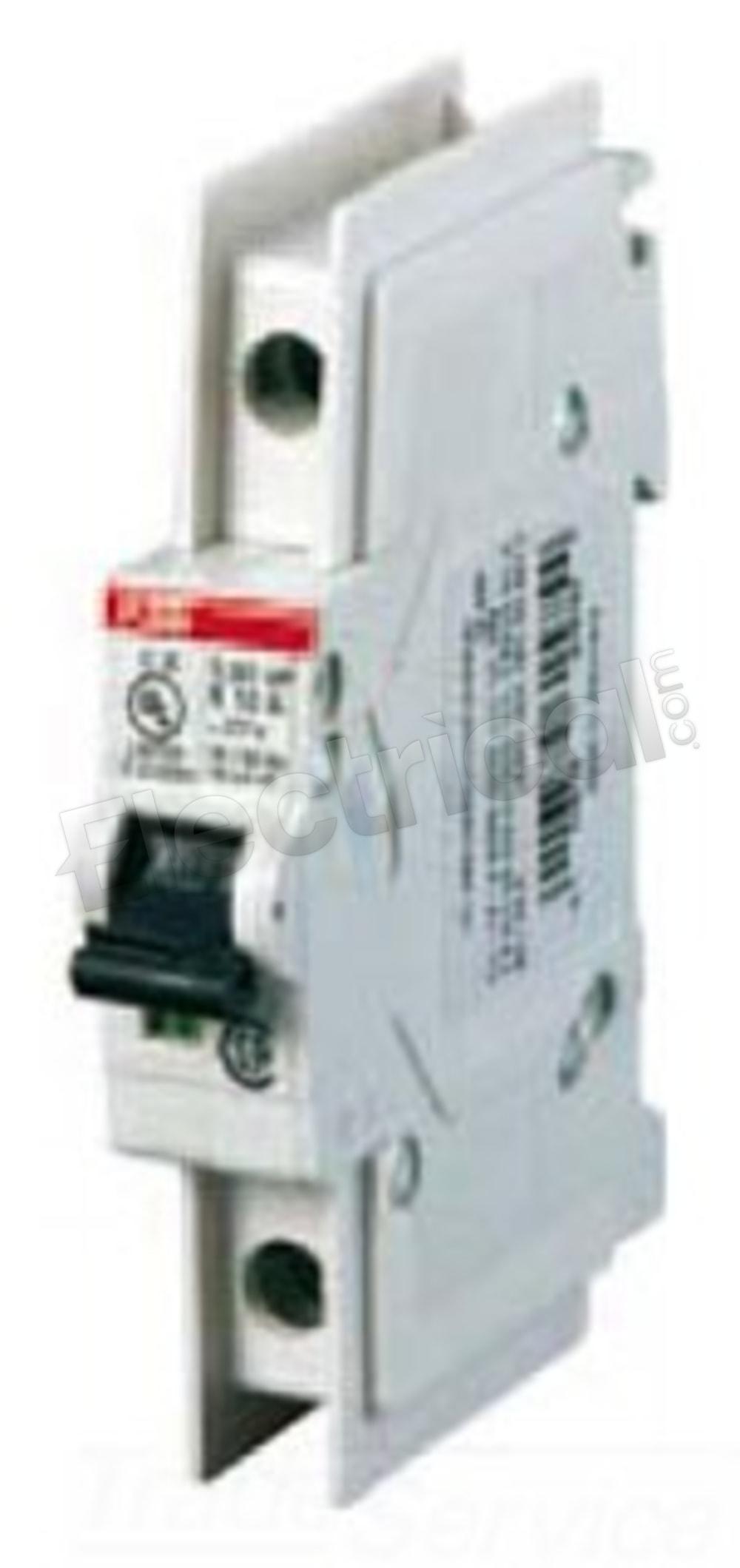

S201UP-Z2, ABB, S 200 UP Series, type , 1P, 1PH, 2A, 277V, 10kA@277V, standard interrupting capacity, current limiting, DIN rail mounted, Feed-Thru, suitable for reverse feed, UL/CSA/IEC approval, branch circuit protection, Z trip characteristic, Thermal Magnetic trip functions, Thermal Magnetic, miniature molded case circuit breakers and branch circuit protective device

HJA36150U31XBCUP, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 150A, 600V, 65kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse connection, can be used for 2P applications, micrologic standard 3.2 non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, complete with alarm switch, 48 VDC under voltage release (UVR), molded case circuit breakers

MP50H-3P-4000A-MO-BO-LS, Merlin Gerin, insulated case circuit breaker, Masterpact, type , 5000A frame, includes 4000A or 5000A sensor rating with 4000A rating plug, 3P, 3PH, 600V, 100kA@480V, accepts the following programmer/trip unit devices: STR28D, STR28DP, STR38S, STR38P, STR38ST, STR38SW, STR58U, STR58UP, STR58UT, STR58UW, STR68U, AC-PRO-MP, Solid State electronic, insulated case circuit breakers

XT4LQ3040AFF000XXX, ABB, molded case circuit breaker, SACE Tmax XT, Type , 3-Pole, 40A, 600V, 50kA@600V, Thermal Magnetic Fixed (TMF), UL 100% Rated, Line Side Termination (top): F front terminals no lugs installed, Load Side Termination (bottom): F front terminals no lugs installed, No - 1SDA07211R1 global reference

PDG40M0300VFAL, Eaton, Cutler Hammer, Power Defense, type , 50º C non-UL listed, 3PH, 4P, 0% N, 600V, 300A, 65kA@480V, Bolt-On, load side lug terminals, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers; globally rated non-UL listed

WLL2F312PG, Siemens, WL Series, type , frame size II, fixed mount, 3P, 3PH, 1200A, 600V, 100kA@480V, UL listed, high interrupting capacity, Bolt-On, complete with solid state ETU745 programmer + WLGFM48 ground fault module, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and 1000A rating plug, Solid State electronic, low voltage insulated case circuit breakers

SEHD36400LIES4B8, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 400A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 125VDC spring charging motor, shunt closing coil & shunt trip along with 2 N.O. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

MDN4083LEA0222NMNGNENYMCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 200A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Kirk key interlock, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

HDX4B090B, Siemens, VL Series, type , 4P, 3PH, 90A, 600V, 65kA@480V, high interrupting capacity, 40ºC, suitable for reverse fed applications, Bolt-On, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers

SEHD362500ES6, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 2500A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 48VDC shunt trip, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

TB63350AJ14, General Electric, Tri-Break, type , 3P, 3PH, 350A, 600V, 200kA@480V, current limiting, 40°C, Bolt-On, complete with current limiters, interchangeable trip, LI - Long-Time and Instantaneous trip functions, lugs not included, Thermal Magnetic molded case circuit breakers

HMCP400X5S10, Eaton, Westinghouse, Cutler Hammer, Series C, type , K Frame, 3P, 3PH, 400A, 600V, 35kA@480V, Feed-Thru, complete with left-pole mounted 110-240Vac rear shunt trip, I - Instantaneous Protection Only and standard line & load side lug terminals, magnetic range 2000-4000A, Magnetic Only, molded case circuit breakers

MDN4083LEA0322NMNC4ECNDSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB metal frame padlockable pushbutton cover, 3P, 3PH, 800A, 300A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 24Vdc UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, 4A/4B auxiliary switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

SEHD36800LSGES3A4, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 800A, 600V, 150kA@480V, high interrupt rating, Draw-Out, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 48VDC spring charging motor, shunt closing coil & shunt trip along with 2A2B with 1N.O./N.C. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

EH3H090L, Siemens, ITE, EH Series, type , 3P, 3PH, 90A, 480V, 14kA@480V, standard interrupting capacity, Feed-Thru, complete with I - Instantaneous protection only and line & load side lug terminals, high magnetic range, MCP, motor circuit protectors, Magnetic Only, molded case circuit breakers

MDN4083LEA0722NMNG4NNNDPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

SEHF363000LSIGES4B8, Schneider Electric, Square D, SE Series, type , 3P, 3PH, 3000A, 600V, 150kA@480V, high interrupt rating, Bolt-On, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, electrically operated complete with 125VDC spring charging motor, shunt closing coil & shunt trip along with 2 N.O. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

MDN4083LEA0222NMNF4YNADWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 200A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

HDA260901AFBHUD, Square D, PowerPact, type , 2P, A & B phase connection, 1PH, 90A, 600V, 18kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, complete with 2A/2B low-level aux switch, alarm switch low-level, 208/277 VAC under voltage release (UVR), molded case circuit breakers

SKLL36BF2600C, General Electric, Spectra Series, type , 3P, 3PH, 600A, 600V, 65kA@480V, complete with SRPK1200B600 rating plug, high interrupting capacity, 100% rated, Bolt-On, suitable for reverse fed applications, UL listed, complete with interchangeable MVT, MicroVersaTrip, Plus trip unit with LSIT - Long-Time, Short-Time, Instantaneous and Targets with Control Power trip functions, lugs not included, Solid State Electronic, molded case circuit breakers

NPGF36100YP, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 1000A, 600V, 35kA@480V, UL listed, standard interrupting capacity, Bolt-On, complete with micrologic interchangeable basic ET 1.01 trip, fixed handle padlocking device, LI - Long-Time and Instantaneous trip functions, lugs not included, Solid State electronic, molded case circuit breakers
