MDN4083LEA0722NMNK4NCNCSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame with factory installed block close PB metal frame padlockable pushbutton cover, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, load side lug terminals, 4A/4B auxiliary switch, mechanical trip indicator & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

SEF36350LIES3D5, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 350A, 600V, 100kA@480V, Bolt-On, complete with Micrologic Series B trip device, LI - Long-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 48VDC spring charging motor, shunt closing coil & shunt trip along with AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

LJF36600, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 600A, 600V, 65kA@480V, UL listed, current limiting, Bolt-On, can used for 2P applications, complete with non-interchangeable micrologic trip, lugs not included, Solid State electronic, molded case circuit breakers

SGLL3606L5MX General Electric Spectra Series, type , 3P, 3PH, 600A, 600V, 65kA@480V, high interrupting capacity, 100% rated, UL listed, suitable for reverse fed applications, complete with microEntelliGuard trip unit with LSIA, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm and ZSI, zone selective interlocking & neutral protection trip functions and basic metering communication features, Solid State electronic, molded case circuit breakers

GNC3800T33WP10, Cutler Hammer, Series G, type , 800A frame, 3P, 3PH, 600V, 100kA@480V, very high interrupting capacity, Bolt-On, complete with Digitrip RMS 310 trip, LS - Long-Time and Short-Time trip functions, 800A fixed rating plug, lugs not included, Solid State electronic, molded case circuit breakers

HRA36100U31XSLYP, Square D, PowerPact, type , 3P, ABC phase connection, 3PH, 100A, 600V, 200kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse connection, can be used for 2P applications, micrologic standard 3.2 non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Solid State electronic, complete with 48 VAC shunt trip, "ON" or "OFF" end handle padlock device, molded case circuit breakers

SED36400LSIGA8, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 400A, 600V, 100kA@480V, Draw-Out, complete with Micrologic Series B trip device, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, Solid State protection, complete with 4A4B with 1N.O./N.C. AC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

PEAH3ATSB0025, General Electric, GuardEon, type , 3PH, 3P, 600V, 8-25A, 100kA@480V, front connection/Feed-Thru, toggle mechanism, complete with PremEon S interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers; meet UL, cUL, IEC, CE, CCC requirements

XT2SU3125CFF000XXX, ABB, molded case circuit breaker, SACE Tmax XT, Type , 3-Pole, 125A, 600V, 22kA@600V, Ekip DIP LIG, UL Standard, Line Side Termination (top): F front terminals no lugs installed, Load Side Termination (bottom): F front terminals no lugs installed, No - 1SDA07211R1 global reference

SHB1G367L, General Electric, Power Break II, type , 3P, 3PH, 600V, 800A current sensor rating, 100kA@480V, high interrupting capacity, Bolt-On, back connected, 800A frame rating, complete with Entelliguard trip, LSHG - Long-Time, Short-Time, High-Range Instantaneous and Ground Fault trip functions, full metering, modbus communication & ZSI features and 700A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

SSD2G557T, General Electric, Power Break II, type , 3P, 3PH, 600V, 1600A current sensor rating, 65kA@480V, standard interrupting capacity, Draw-Out, 1600A frame rating, complete with Entelliguard trip, LSHG - Long-Time, Short-Time, High-Range Instantaneous and Ground Fault trip functions, full metering, RELT, modbus communication & ZSI features and 1500A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

PEBB3ATSB0060, General Electric, GuardEon, type , 3PH, 3P, 600V, 18-60A, 18kA@480V, 100% UL rated, front connection/Feed-Thru, toggle mechanism, complete with PremEon S interchangeable trip, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State electronic, molded case circuit breakers; meet UL, cUL, IEC, CE, CCC requirements

PKL46060U74AE1AA, Square D, Schneider Electric, PowerPact, type , 4P, 3PH, 600A, 600V, 50kA@480V, UL listed, high interrupting capacity, Feed-Thru, complete with 1A/1B auxiliary switch, micrologic interchangeable harmonic 6.0H trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers

MDN4083LEA0422NMNF2YNCDSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Castell keylock, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

HDA260201BHSH, Square D, PowerPact, type , 2P, A & B phase connection, 1PH, 20A, 600V, 18kA@480V, UL listed, standard interrupting capacity, I-Line Style Plug-In, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic, complete with alarm switch low-level, 380/480 VAC shunt trip, molded case circuit breakers

MDN4083LEA0822NMNA4YNYNWX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-127Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Kirk key interlock, load side lug terminals, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, pre-wired

10054335P1, General Electric, Power Break II, replacement MVT and MVT PM trip unit access door, for stationary and draw-out Power Break II insulated case circuit breakers

PDG34K0125P4WJ, Cutler Hammer, Eaton, Power Defense, type , 3PH, 4P, 600V, 125A, 50kA@480V, Feed-Thru, line & load side lug terminals, complete with PXR25 trip with ARMS LSI - Long-Time, Short-Time and Instantaneous trip functions with Modbus RTU, ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

BQ2B11000S07, Siemens, BQ Series, type , 2P, 1PH, 110A, 240V, 10kA@240V, standard interrupting capacity, Bolt-On, complete with 24V shunt trip, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and load side lug terminals, Thermal Magnetic molded case circuit breakers

SS-8TF2-LE, Swagelok part and accessory

HJA260302AABKUJYP, Square D, PowerPact, type , 1PH, 2P, A & C phase connection, 30A, 600V, 65kA@480V, current limiting, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 1A/1B aux switch, alarm switch and overcurrent trip switch, low-level, 525/600 VAC under voltage release (UVR), "ON" or "OFF" end handle padlock device, molded case circuit breakers

MDN4083LEA0122NMNK4YNAMSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 100A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals, mechanical trip indicator & OTS switch, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

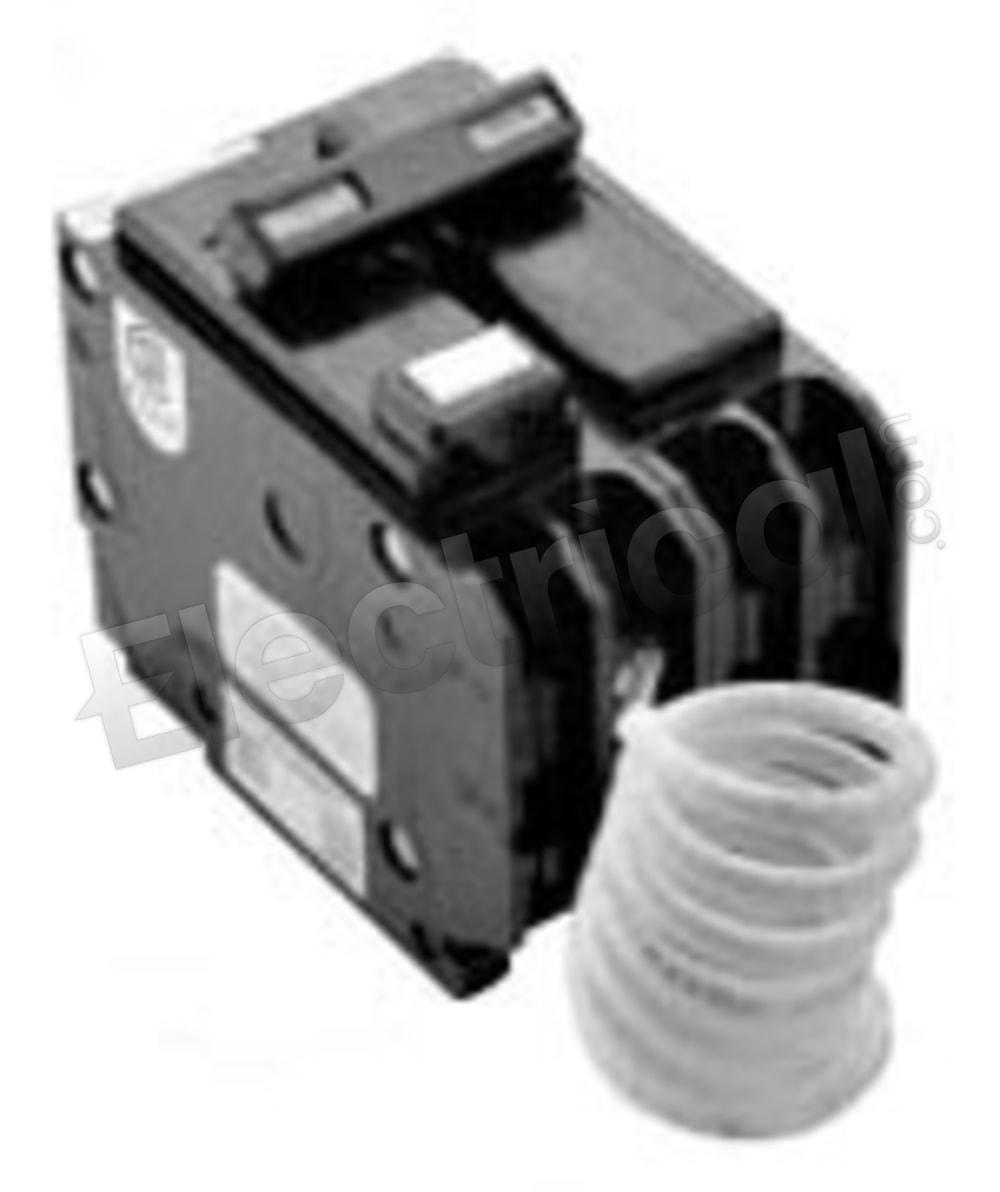

GFCB220CS, Cutler Hammer, GF Series, type , ground fault circuit interrupters (GFCI), clamshells, 2P, 1PH, 20A, 120/240V, 10kA@240V, UL listed, standard interrupting capacity, 40°C, Plug-In, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic molded case circuit breakers, suitable for use in type BR load centers

RJF36060U74AE1, Schneider Electric, Square D, PowerPact, type , 3P, 3PH, 600A, 600V, 65kA@480V, UL listed, high interrupting capacity, Bolt-On, complete with micrologic interchangeable harmonic 6.0H trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, lugs not included, Solid State electronic, molded case circuit breakers
