SED364000LSIES6D5, Square D, Schneider Electric, SE Series, type , 3P, 3PH, 4000A, 600V, 100kA@480V, Draw-Out, complete with Micrologic Series B trip device, LSI - Long-Time, Short-Time and Instantaneous trip functions, Solid State protection, electrically operated complete with 120VAC spring charging motor, 120VAC shunt closing coil & 48VDC shunt trip along with AC/DC rated auxiliary switch with bell alarm, insulated case circuit breakers, these breakers are now obsolete; however, we do still stock them

JG3200S39, Eaton, Cutler Hammer, Westinghouse, Series C, type , 3P, 3PH, 200A, 600V, 14kA@480V, standard interrupting capacity, Feed-Thru, suitable for reverse feed applications, magnetic pickup range 350-700, complete with right-pole mounted 480-600Vac, 50/60Hz left side mount shunt trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, engine generator molded case circuit breakers

XT4VQ4100BFF000XXX, ABB, molded case circuit breaker, SACE Tmax XT, Type , 4-Pole, 100A, 600V, 65kA@600V, Thermal magnetic adjustable (TMD/TMA), UL 100% Rated, Line Side Termination (top): F front terminals no lugs installed, Load Side Termination (bottom): F front terminals no lugs installed, No - 1SDA07211R1 global reference

HDA36035BHUP, Square D, PowerPact, type , 3PH, 3P, ABC phase connection, 35A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with alarm switch low-level, 48 VDC under voltage release (UVR), molded case circuit breakers

MDN4083LEA0522NMNX4NNANCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 500A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 380-415Vac UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

HDA260154UK, Square D, PowerPact, type , 1PH, 2P, B & C phase connection, 15A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 24 VAC under voltage release (UVR), molded case circuit breakers

HJL36030BCSR, Square D, PowerPact, type , 3P, 3PH, 30A, 600V, 65kA@480V, UL listed, current limiting, Feed-Thru, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic, complete with alarm switch, 125 VDC shunt trip, molded case circuit breakers

PDG23P0150E3WK, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 150A, 100kA@480V, Bolt-On, line side lug terminals, complete with Xpert Release PXR20 trip with LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, relays, modbus and ZSI, Solid State electronic, molded case circuit breakers; globally rated

PDG33M0125P4YL, Eaton, Cutler Hammer, Power Defense, type , 3PH, 3P, 600V, 125A, 65kA@480V, Bolt-On, load side lug terminals, complete with PXR25 trip with ARMS LSI - Long-Time, Short-Time and Instantaneous trip functions with Modbus RTU, CAM link, ZSI & relays, Solid State electronic, molded case circuit breakers; CSA, IEC, UL, CCC certifications

MDN4083LEA0822NMNG4ENRCPX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 800A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 32Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, pre-wired

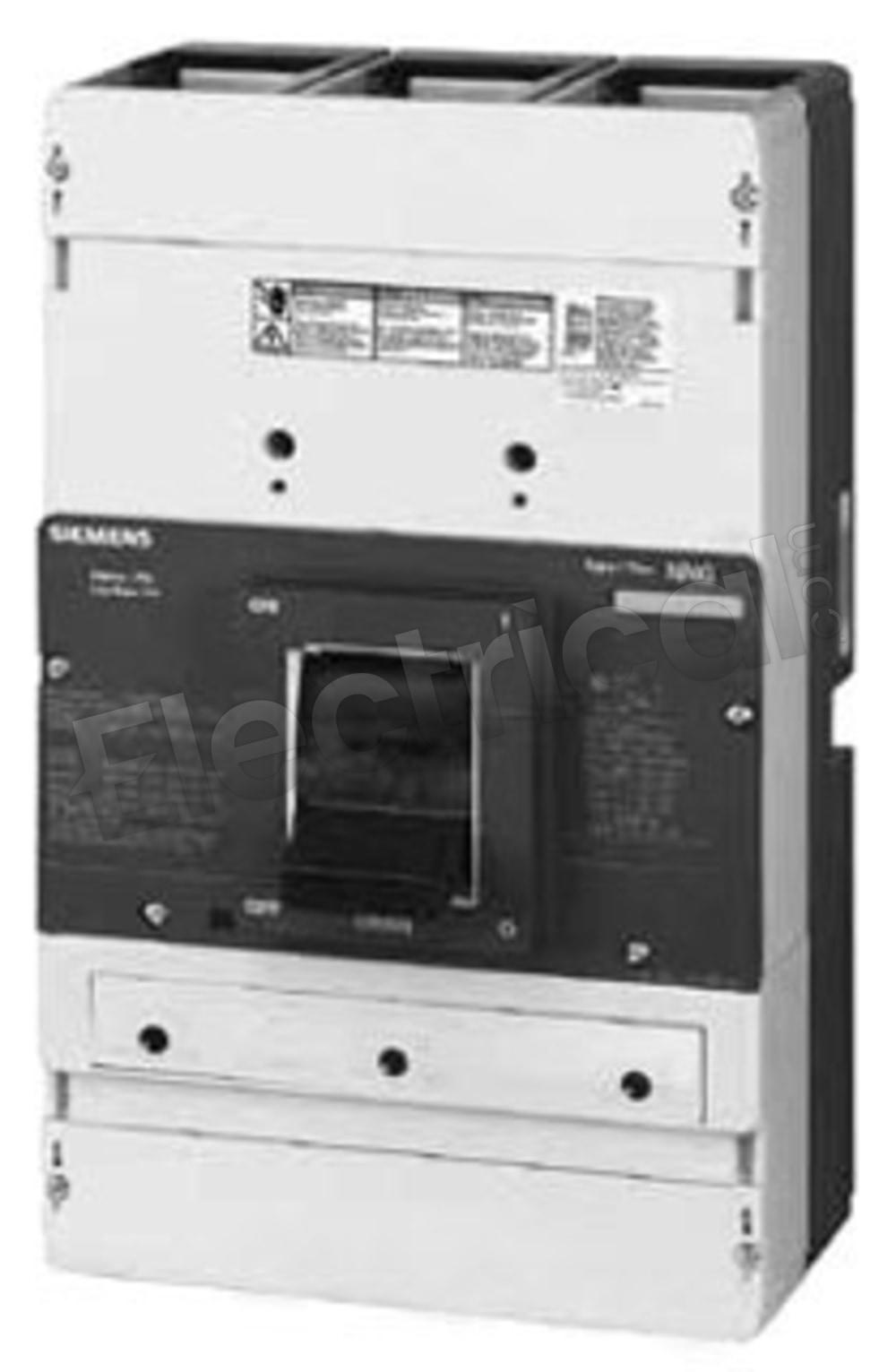

HNG3V800L, Siemens, VL Series, type , 3P, 3PH, 800A, 600V, 65kA@480V, high interrupting capacity, Feed-Thru, interchangeable trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, line & load side lug terminals, Solid State electronic, molded case circuit breakers

SGHC3604L5T6 General Electric Spectra Series, type , 3P, 3PH, 400A, 600V, 35kA@480V, standard interrupting capacity, UL listed, suitable for reverse fed applications, complete with microEntelliGuard trip unit with LSIA, LSIGA - Long-Time, Short-Time, Instantaneous and Ground Fault Alarm and ZSI, zone selective interlocking trip functions and advanced metering, modbus & waveform capture communication features, Solid State electronic, molded case circuit breakers

WLL2D330GP, Siemens, WL Series, type , frame size II, drawout, 3P, 3PH, 3000A, 600V, 100kA@480V, UL listed, high interrupting capacity, Draw-Out, complete with solid state ETU748 programmer+ WLGFM48 ground fault module, LSG - Long-Time, Short-Time and Ground Fault trip functions and 400A rating plug, Solid State electronic, low voltage insulated case circuit breakers

MDN4083LEA0422NMNJ2ENRNCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 400A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 480Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Ronis keylock, load side lug terminals, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

MDN4083LEA0722NMNE4ENYDSX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 110-125Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Kirk key interlock, load side lug terminals & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, with shutters, unwired

MHC29F, Square D, NQOD, lighting panelboard enclosure, 240V, 100A, NEMA Type 1, mono-flat front, flush mount enclosure, to be used with main lug only NQOD panelboards

FAZ-D50/2, Eaton, FAZ Series, type , UL listed, DIN rail mounted miniature circuit breaker, D curve, 1PH, 2P, 277/480V, 50A, 10kA@277/480VV, Feed-Thru, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breaker

HDA260702ABBESK, Square D, PowerPact, type , 1PH, 2P, A & C phase connection, 70A, 600V, 18kA@480V, standard interrupting capacity, I-Line Style Plug-In, UL listed, suitable for reverse fed applications, non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, complete with 2A/2B aux switch, alarm switch and overcurrent trip switch, 24 VAC shunt trip, molded case circuit breakers

LV438538, Schneider Electric, Compact NSX, type , DC rated, 3P, 3PH, 630A, 750VDC, 100kA@750V, Bolt-On, complete with NSX630S DC frame and 3 pole MP3 trip unit, I - Instantaneous protection only, Magnetic Only, molded case circuit breakers

MDN4083LEA0722NMNK2NNCNAX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 700A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 600Vac UVR, 2A/2B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, Castell keylock, load side lug terminals & mechanical trip indicator, Solid State, low voltage power insulated case circuit breakers

SHF4G483K, General Electric, Power Break II, type , 3P, 3PH, 600V, 1000A current sensor rating, 100kA@480V, high interrupting capacity, Bolt-On, front connected, 2500A frame rating, complete with Entelliguard trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, full metering, RELT, modbus communication, relays & ZSI features and 600A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems

XT2NU4040RFF000XXX, ABB, molded case circuit breaker, SACE Tmax XT, Type , 4-Pole, 40A, 600V, 18kA@600V, Ekip Touch Measuring LSI, UL Standard, Line Side Termination (top): F front terminals no lugs installed, Load Side Termination (bottom): F front terminals no lugs installed, No - 1SDA07211R1 global reference

MDN4083LEA0522NMNF4YNLDCX, Cutler Hammer, Magnum DS, type , drawout mounted, narrow frame, 3P, 3PH, 800A, 250A current sensors and rating plugs, 600V, 42kA@600V, 40°C, Bolt-On, manually operated, complete with factory installed 220-250Vdc UVR, 4A/4B auxiliary switch, interchangeable Digitrip 220, LI - Long-Time and Instantaneous trip functions, operations counter, Castell key interlock, load side lug terminals, mechanical trip indicator, OTS switch & latch check switch for external wiring, Solid State, low voltage power insulated case circuit breakers, shipped in drawout narrow cassettes, without shutters, unwired

SSF6G9N3W, General Electric, Power Break II, type , 3P, 3PH, 600V, 4000A current sensor rating, 100kA@480V, standard interrupting capacity, Bolt-On, front connected, 3000A frame rating, complete with Entelliguard trip, LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault trip functions, current metering, modbus communication & ZSI features and 2000A rating plug, Solid State electronic, insulated case circuit breakers, suitable for use with Power Break II switchgear systems
